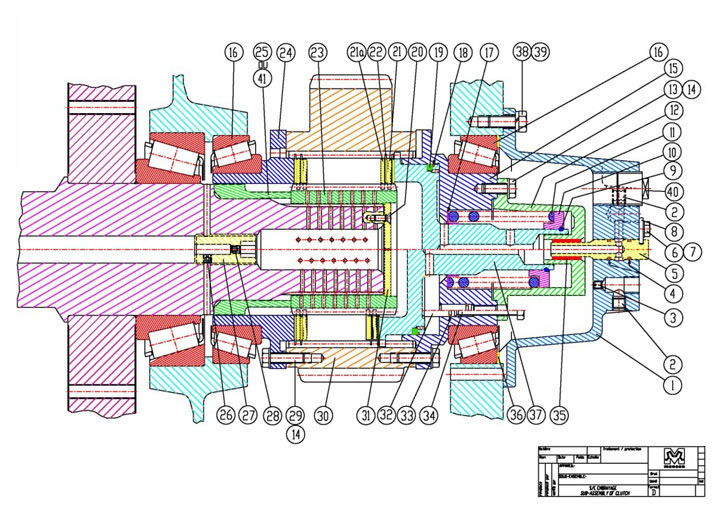

The schematic drawings that you will find on this page will help you identify the different parts you want to replace during repair or overhaul of your gearbox. Once you have identified the desired parts with their item number, just ask Masson-Marine for a detailed quotation. Please note, however, that every enquiry MUST contain the following information: – SERIAL NUMBER of the gearbox, – TYPE of gearbox, – RATIO, – number of the DRAWING, and – LIST OF PARTS that you require.
ITEM | DESCRIPTION |
---|---|
1 | casing flange, port and starboard side |
2 | threaded plug |
3 | orifice |
4 | O-ring seal |
5 | injection pipe |
6 | hex screw |
7 | serrated washer |
8 | tab |
9 | snap ring |
10 | spring pressure plate |
11 | clutch relief spring |
12 | clutch cover |
13 | hex screw |
14 | serrated washer |
15 | clutch drum carrier hub |
16 | taper roller bearing |
17 | collar |
18 | O-ring seal |
19 | seal ring |
20 | countersunk socket screw |
21 | plain steel clutch plate |
22 | lined clutch disc |
23 | clutch hub |
24 | clutch disc pressure plate & drum carrier |
25 | spacer for clutch drum |
26 | orifice |
27 | special screw |
28 | orifice |
29 | hex screw |
30 | clutch drum |
31 | lock ring |
32 | come-home push rod |
33 | O-ring seal |
34 | hex screw |
35 | bronze bushing |
36 | set of shims |
37 | clutch piston |
38 | hex screw |
39 | spring washer |
40 | threaded plug |
41 | spacer for clutch drum |
