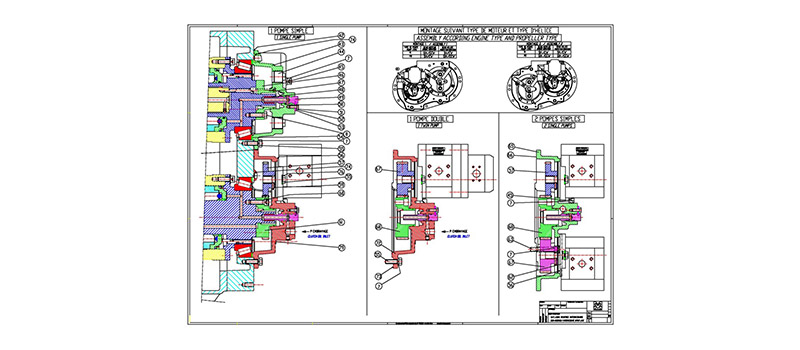

Drawing 80: Oil Pump Drive Assembly

Drawing 150: External parts ASSEMBLY

Item Description
7 spring washer
8 hex screw
42 gasket
43 rear plate
44 plug
45 socket screw
46 rotation seal
47 seal ring
48 bronze bushing
49 pressure feed pipe
50 O-ring
51 hex screw
52 spring washer
53 tab
54 set of shims
55 hex screw
56 oil pump flange gasket
57 driven gearwheel
59 threaded stud
60 socket screw
61 driving pinion
62 pump carrier cover
63 socket screw
65 pump carrier flange
66 gasket
67 driven gearwheel f. twin pump
68 driving pinion for twin pump
72 pump carrier plate f. single pump
73 gasket
74 O-ring
76 serrated washer
79 threaded stud
