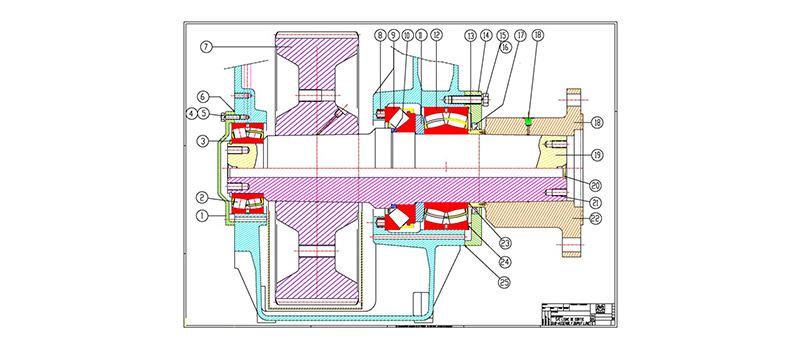

Drawing 50: OUTPUT DRIVE SHAFT ASSEMBLY

Drawing 150: External parts ASSEMBLY

Item Description
1 front plate
2 self-aligning roller bearing
3 external snap ring
4 hex screw
5 spring washer
6 gasket
7 output gearwheel
8 coil spring
9 self-aligning roller thrust bearing
10 spacer thrust bearing – shaft
11 spacer thrust bearing – carrier bearing
12 self-aligning roller carrier bearing
13 seal ring sleeve
14 rear bearing cover
15 hex screw
16 spring washer
17 double lip seal ring
18 standard output coupling flange
19 solid output shaft
20 plug
21 CPP output shaft
22 CPP output coupling flange
23 O-ring seal
24 set of shims
25 gasket
